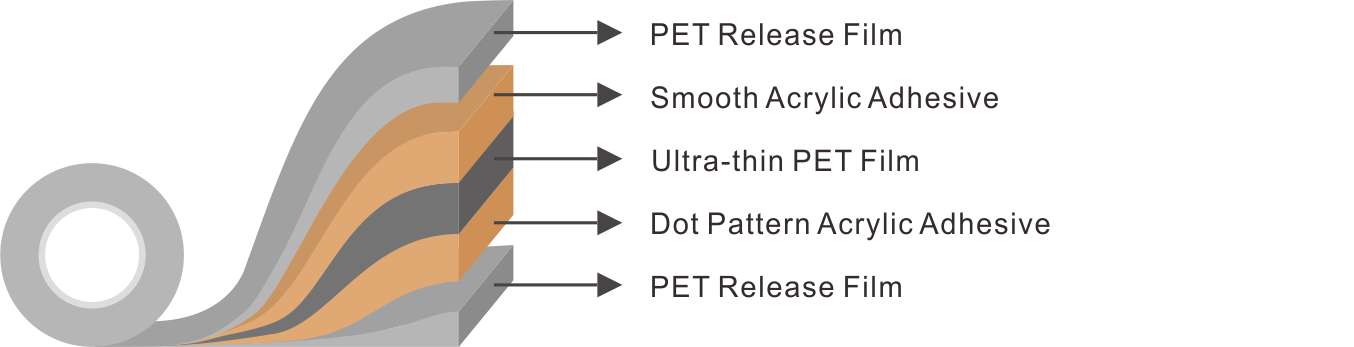

? Single sided air-venting tape using ultrathin clean PET film as carrier and coated with high-quality adhesive.
? Stable release force

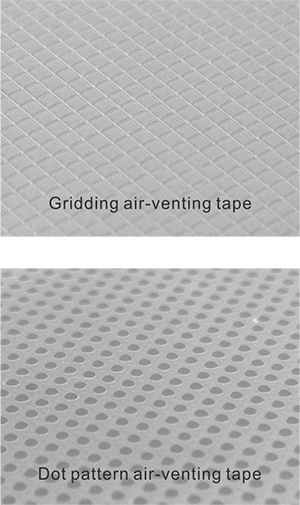

? Highly air-venting performance in dot adhesive layer
? Exhausting gap durative better
? Mounting OLED cushion foam
? Laminating graphite sheet attached on rear cover glass
|
Product |
Thickness (μm) |
Adhesion (gf/25mm) |
Features / Applications |
|
|
Smooth Side |
Gridding Side |
|||
|
HE-018T |
18 |
900 |
650 |
Dot Pattern Air-venting Tape |
|
HE-025T |
25 |
1000 |
600 |
|
|
HE-030T |
30 |
1400 |
600 |
|
|
EX-D006T |
6 |
550 |
350 |
Gridding air-venting tape |
|
EX-D030T |
30 |
900 |
1300 |
|
|
Remark : customizable thickness |
||||
